SMART570™ Display

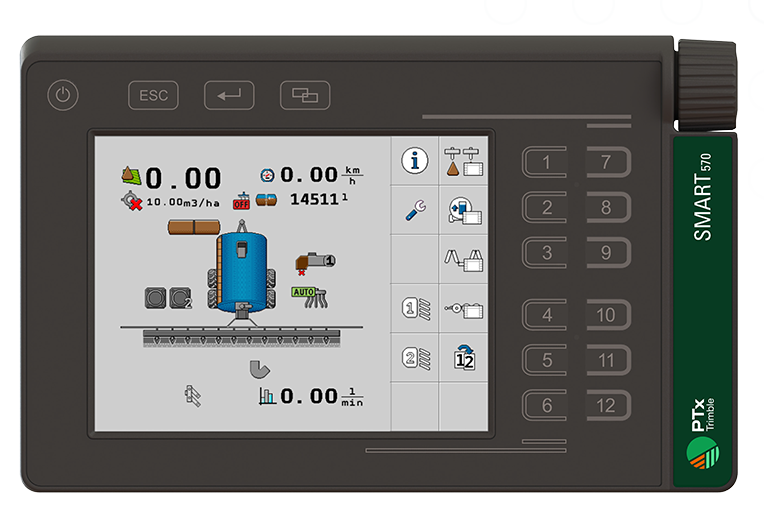

The PTx Trimble SMART570™ universal terminal display is a flexible and affordable entry to ISOBUS implement control

This compact display functions as a universal terminal (UT) on all vehicles or implements equipped with electronic control units (ECUs) that support the AEF ISOBUS UT and AUX-N standards.

It has a 5.7 inch (14.5 cm) touch screen for on screen control, 12 programmable softkey membrane buttons for operation while on the move, and a rotary encoder for rapid changes of numerical data.

Datasheet EU Declaration of Conformity

Benefits and Performance

Control the ISOBUS equipment you already own with a dedicated secondary screen easily installed in any vehicle cab.

  • Flexible
    Programmable ISOBUS universal terminal (UT) control for every brand of equipment compatible to the UT and AUX-N standards, with CAN connectivity via cabled CPC connector.
  • Affordable
    Designed to work alongside existing OEM or aftermarket displays as a dedicated universal terminal capable of displaying machine and implement data from multiple ECUs.
  • Compact
    Flat 5.7 inch (14.5 cm) touch screen design allows installation wherever it is most convenient for your in-cab workflow as screen is clearly viewable even in bright sunlight.
  • Capable
    Twelve (12) programmable softkey buttons for operation while on the move and a rotary encoder for rapid changes of numerical data in addition to the capacitive dual touch screen for complete control.

Specifications

  • ISO 11783 ISOBUS compliant and AEF certified for UT and AUX-N standards
  • 9-pin CPC power/ISOBUS connection
  • 5.7” (14.5cm) VGA color capacitive dual touch screen
  • Rotary encoder and membrane keyboard
  • IP66K rated
